Technical Specifications
Frame: Alloy 700C18"
Fork: Suspension fork travel= 65 mm, with lockout
Handlebar: Alloy width: 660MM, 30mm rise
Stem: Alloy 70mm, +-7
Grip: L:125mm,R:92mm, Closed end
Crankset: Alloy Crank Length 170mm, 36t Chainring
BB setes: L:BB73*127.5mm(26+73+28.5)
Pedal: Alloy 9/16"
Chain: 1/2"*3/32"*116L
Freewheel: Shimano CS-HG200-8, 8-SPEED, 12-14-16-18-21-24-28-32

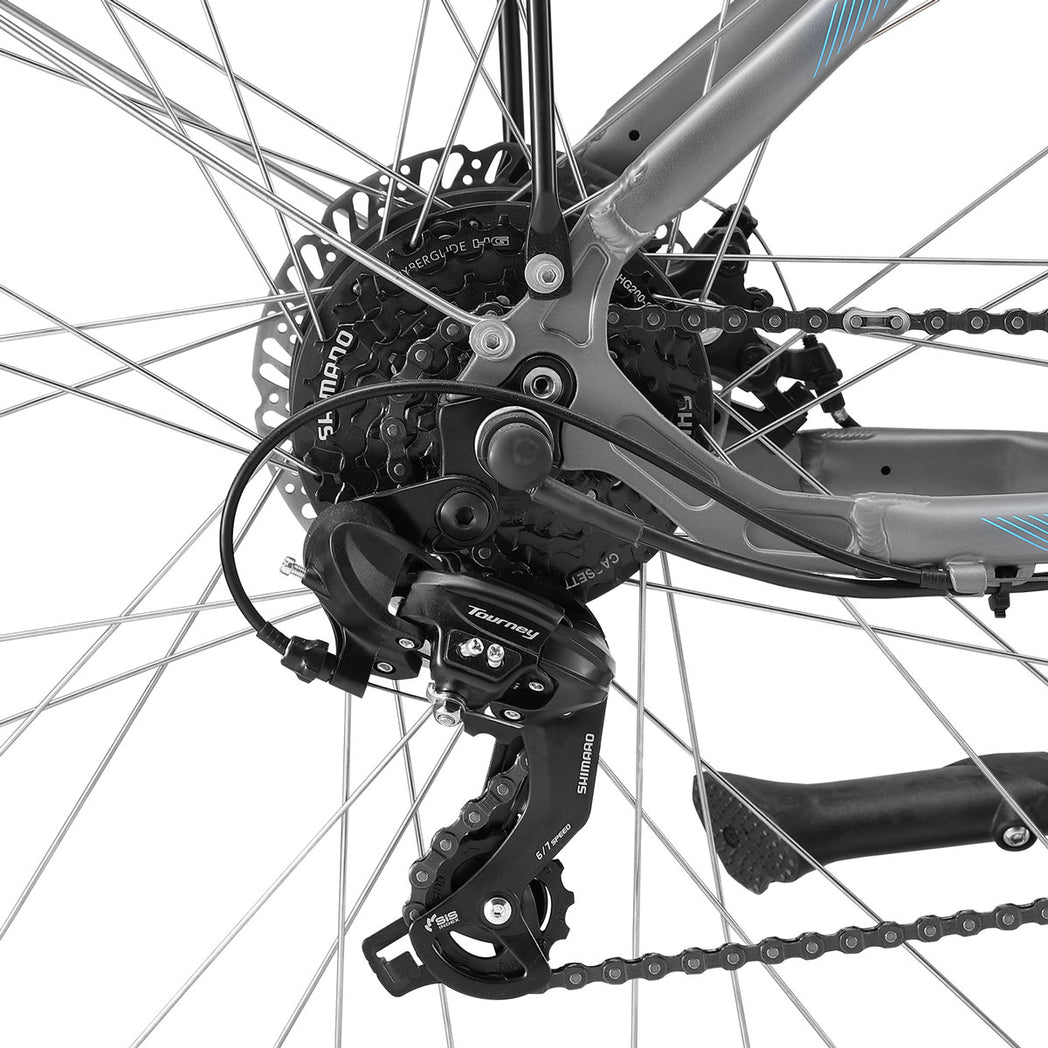

Derailleur R: Shimano TY300D
Shifter: Shimano SL-M315-8R, RIGHT, 8-SPEED RAPIDFIRE PLUS
Brake: Front/Rear, Mechanical disc brake, 160mm Rotor
Hub Front: 3/8"*13G*36H*
Rim: 26"*1.5*13G*36H, H= 25 A/V
Tire: 700*40C
Seat Post: ?27.2*350mm
Seat Clamp: ?31.8 Quick Release
Kickstand: Steel Kickstand

Electrical Components

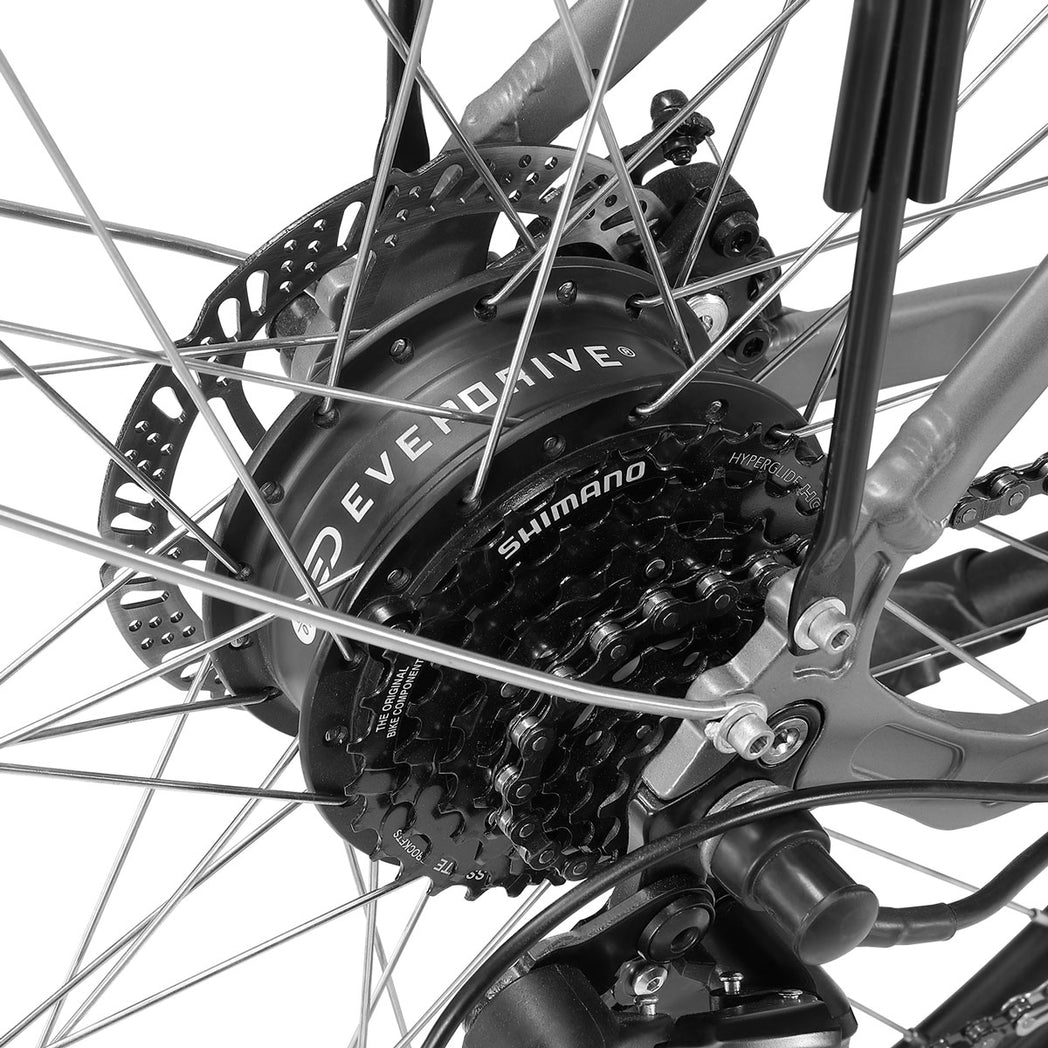

Motor: 700C 36V250W 25KM/H - Complies to EN15194
Torque Sensor: Dual hall Cable:150MM

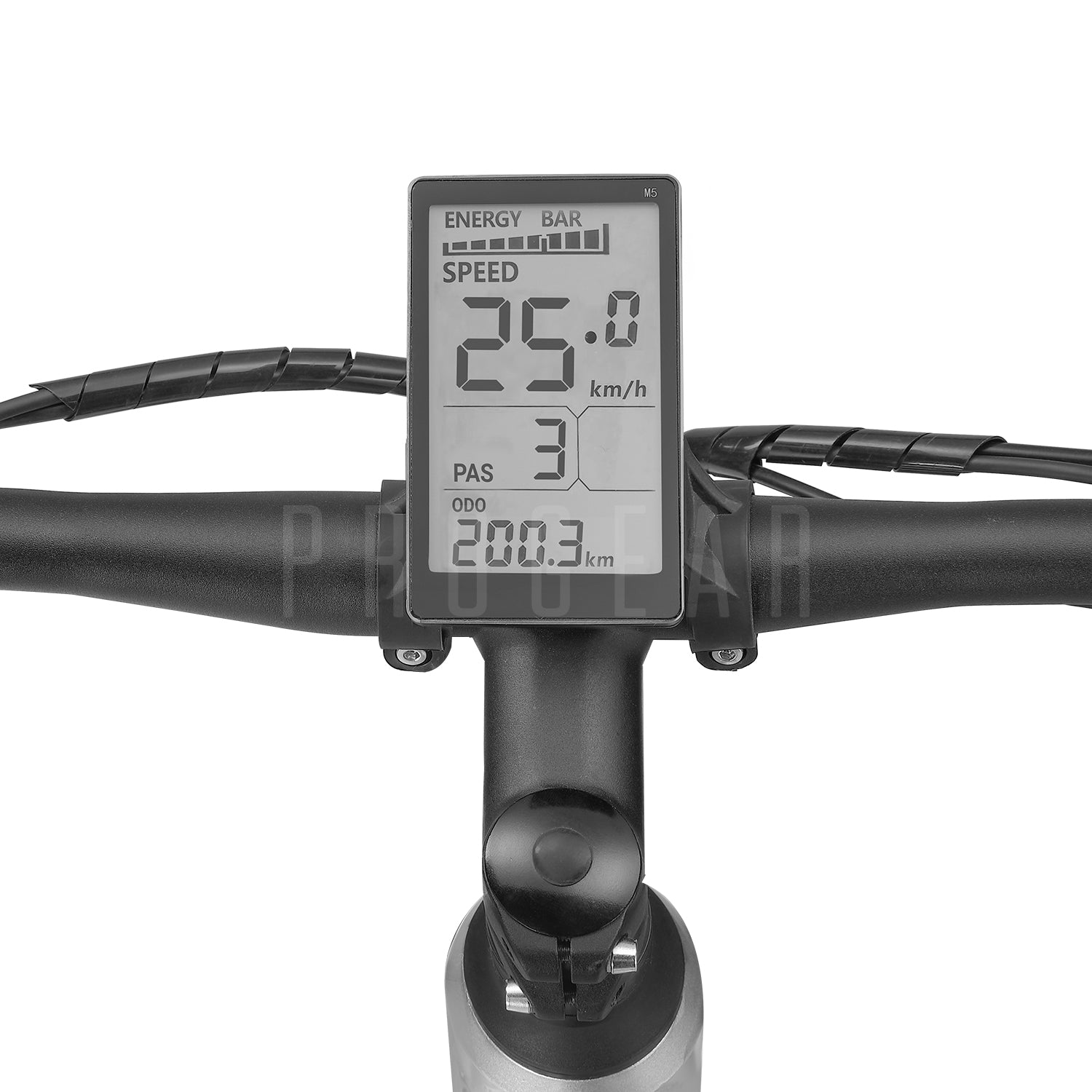

Display: 36V 0-5 level, Max Speed 25kph
Controller: square wave 36V*15A+1
Battery: 36v - 10.4AH
Charger: 42V 2A DC2.1 charger port

Electric Bike Battery Information
The travel distance after a full charge on this e-Bike can vary from 30km to 70km.
There are several factors that will affect how long the battery will last after a full charge.

Factors include:
Level of pedal assistance higher level of assistance will use more battery charge
Weight of Rider & Luggage more weight may require more power from the battery
Terrain & Weather Conditions Terrain & wind may cause drag, and will require more power to maintain speed.
Tyre Conditions Incorrect tyre pressure may create more rolling resistance
Traffic/Route Conditions Stop/Start cycling may use more power to accelerate up to appropriate travelling speeds.
