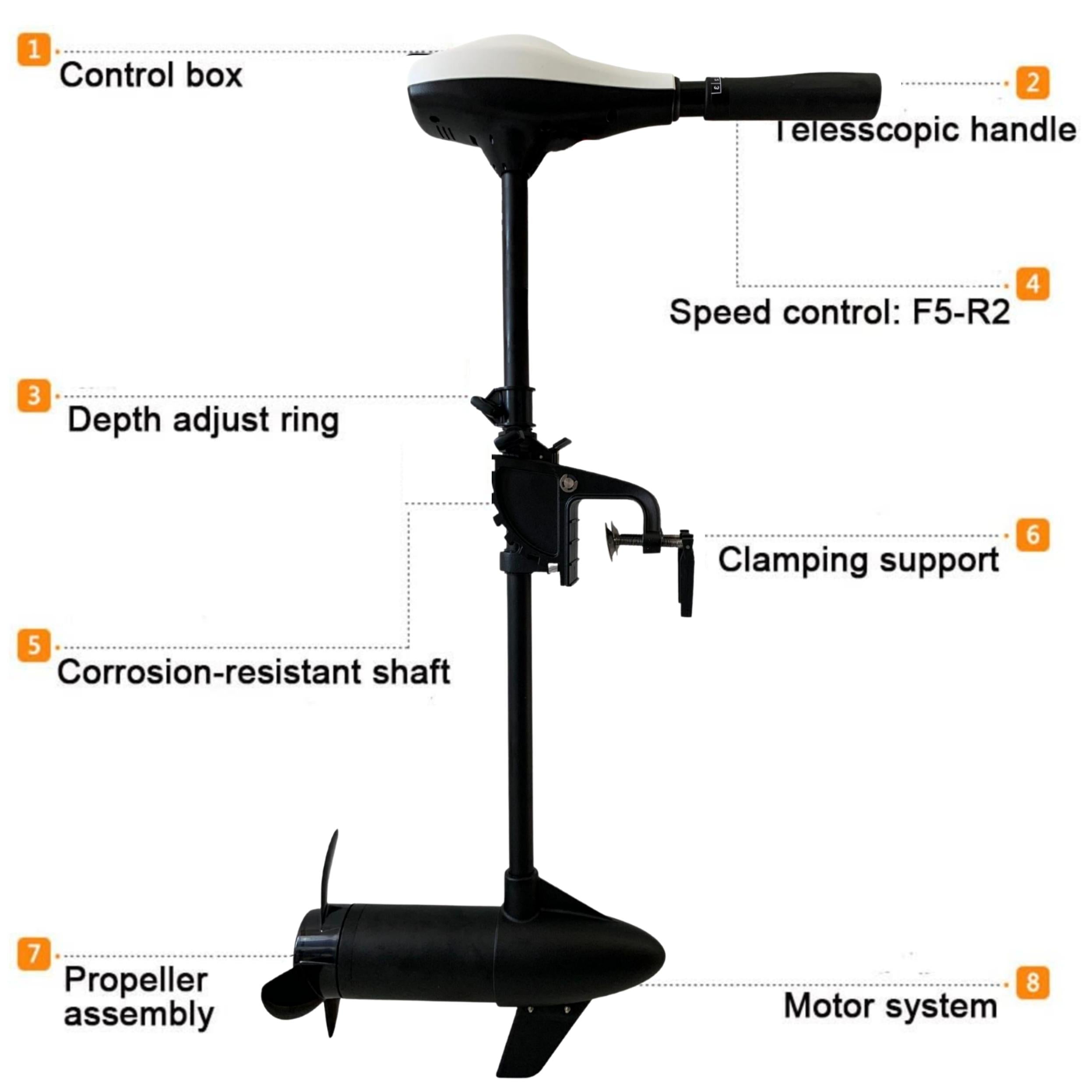

The 66 Thrust Electric Outboard Motor is hydro-dynamically designed with a weedless-wedge propeller with a high performance blade geography. It can be used in both saltwater and freshwater, it also has a flexible and high strength fibre glass composite shaft.

PRODUCT FEATURE

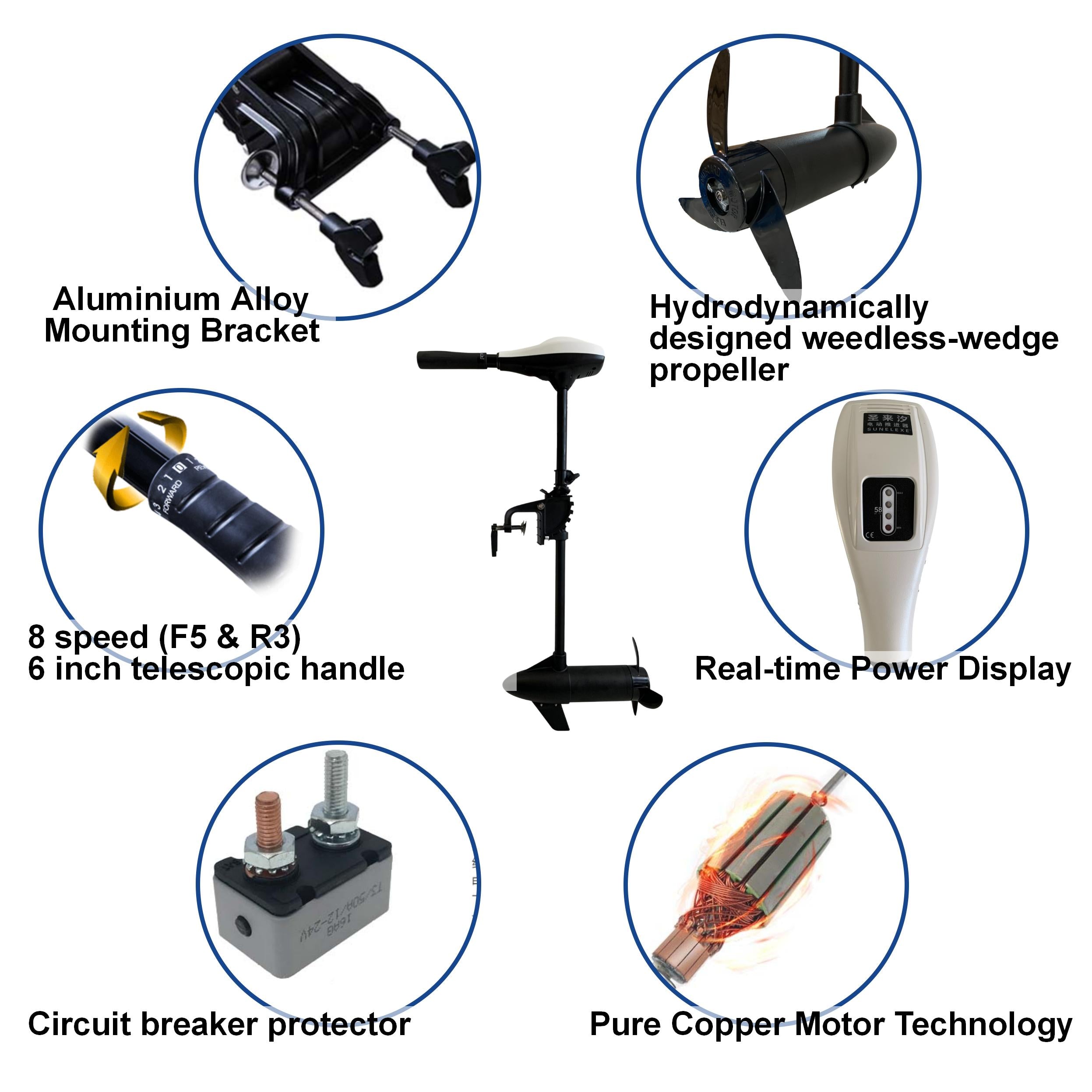

AMP TECH:Applying US AMP connect technology. AMP connector is a technic only used in accuracy industry like plane. It makes connector between wire and switch more reliable than welding.
CLAMP: High strength clamp instead of eye-terminals makes more stable in running.
ROTOR:ALL-COPPER rotor in the head of the motor instead of copper-aluminum for the longest life-time. Running in low noise
PROPELLER: Hydrodynamically designed weedless-wedge propeller with high performance blade geometry.

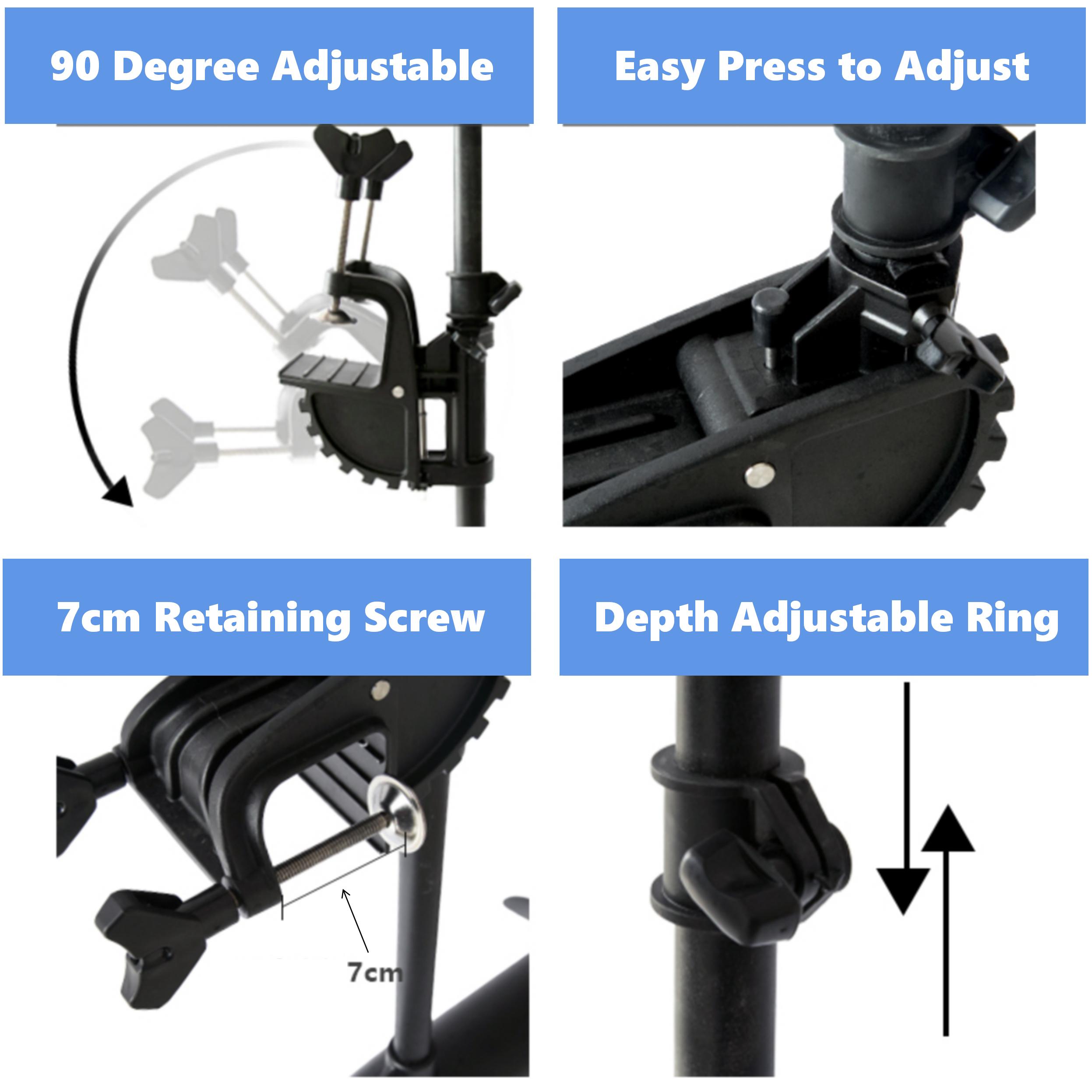

BRACKET:Aluminium alloy mounting bracket with full 90 degree adjustment, also much lighter than the conventional steel ones.
HANDLE:5-speed forward and 3-speed reverse with six inch telescopic handle.
USING environment: Can be used in both salt water and fresh water. The special coating can endure acid, and therefore resist rusting.

Specifications:
Model: L66
Speed control: 8 Speed (F5 & R3)
Motor Type: Brush Motor
Rated voltage (V): 12
Rated speed (RPM): 1700
Rated Current (a): 55
Nominal Power (W): 660
Control Handle: Telescopic Type

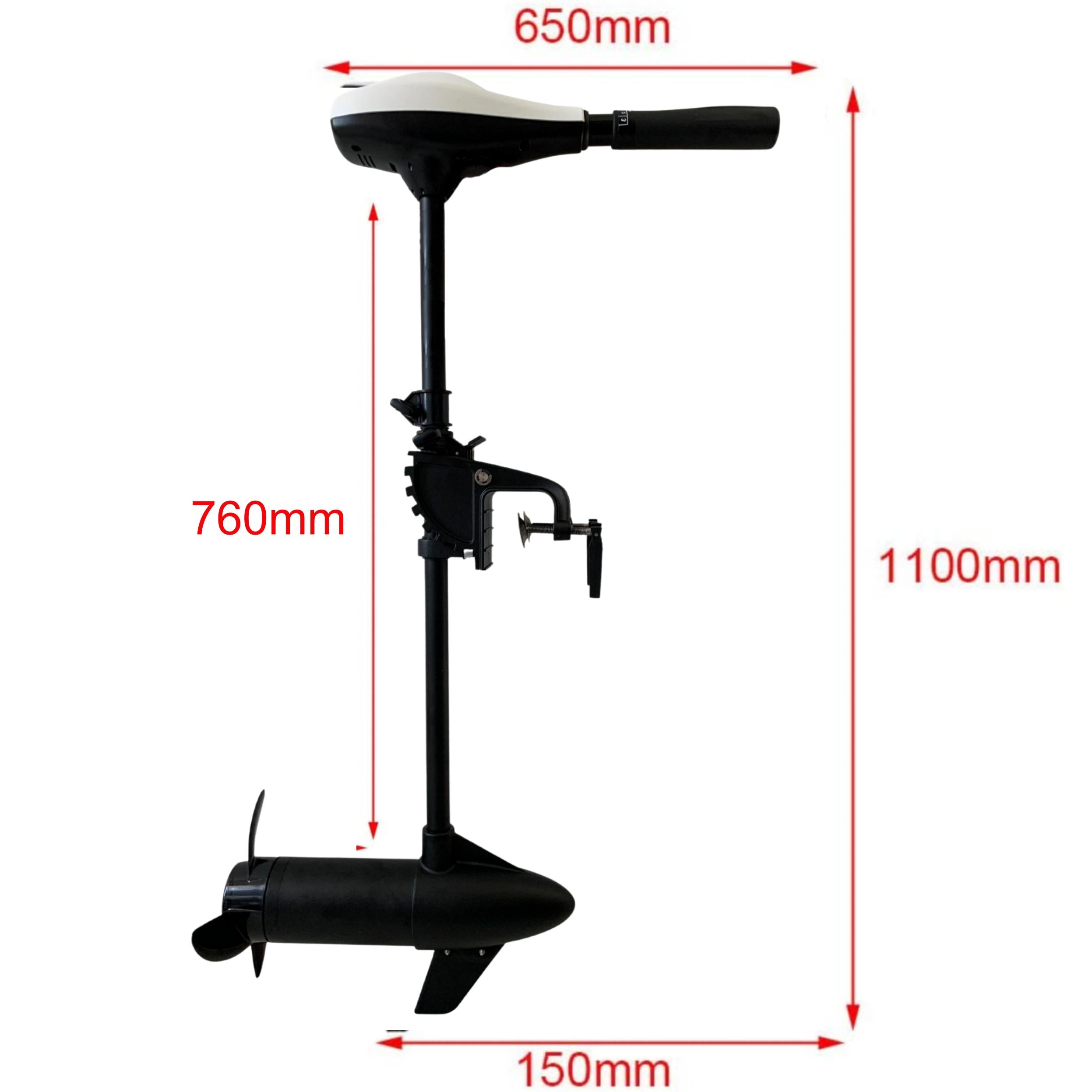

Maximum Rod Length(cm): 76
Maximum speed (km/h): 13
Noise dB: 50dB
N.W./G.W. (kg) 10/12
Propeller Model (in): 3 Veined Leaf tools/10.6
Package Dimensions (cm): 105x 50x 18

Package included:
1x trolling motor
1x User Manual

Battery Model recommendation:
Select 12V 100A-150Abatteries, the maximum output of 3hours of continuous operation.
Note: Battery is not included in the price.

Salt Water Maintenance:
1. At the end of the day wipe the motor down with a cloth soaked in warm water and then rinse the unit with a light spray with the hose.
2. Make sure the propeller is free of any line or weed, regularly check all nuts and bolts and lubricate all moving parts with an aerosol lubricant.
3. Clean battery terminals regularly and check for frayed wires or loose connections.

Important Note:
1.Over the noise, use with all petrol machines are loud, to inform you that we have not tested the decibels, but the sound is the same as the motorbike so it is a normal phenomenon
2.The machine itself is light weight, it can be used for less than1000kg, more weight it used for the speed is most certainly not the same,please note.
3.It can be with hose boats, the common dinghy or fishing boat
4.You need to a Boots-motor-stand or hanging board on the boat.
