Twin Core Wire Electrical Automotive Cable 2 Sheath 450V 6MM 10M

10M 6MM Twin Core Wire 2 Sheath Electrical Cable

With its twin core design, our Twin Cable Sheath Wire is one of the best in the market. Comprising pure oxygen-free copper and a highly durable and strong reinforced PVC cover with black sheathing, our twin core sheath wire can handle any application with ease and confidence. And that can make a difference with a good project and a great one. Not least. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing any of its effective conductivity. The wire is SAA-certified and conforms to strict Australian standards.

Features

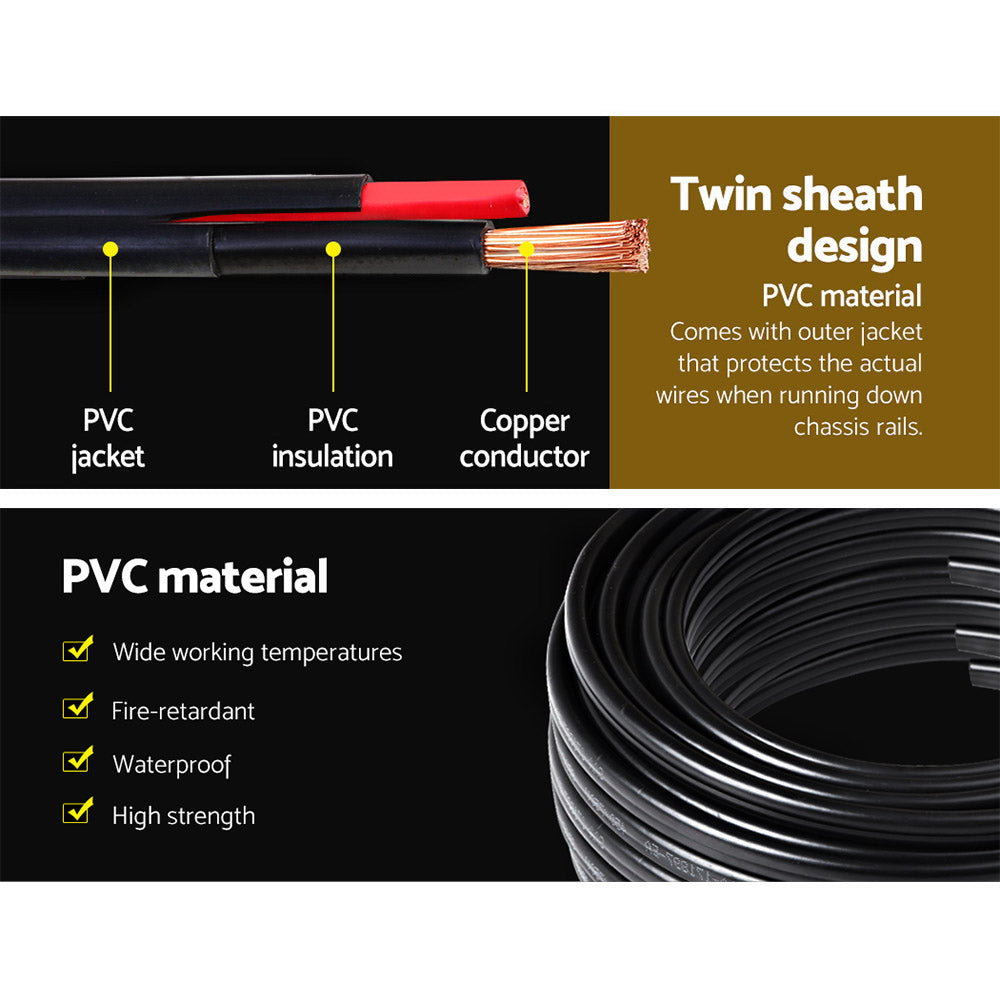

6mm twin sheath automotive cable
Oxygen-free copper core conductor
Low eccentricity
Reinforced PVC material
SAA-certified
Can normally work up to 450V AC/DC

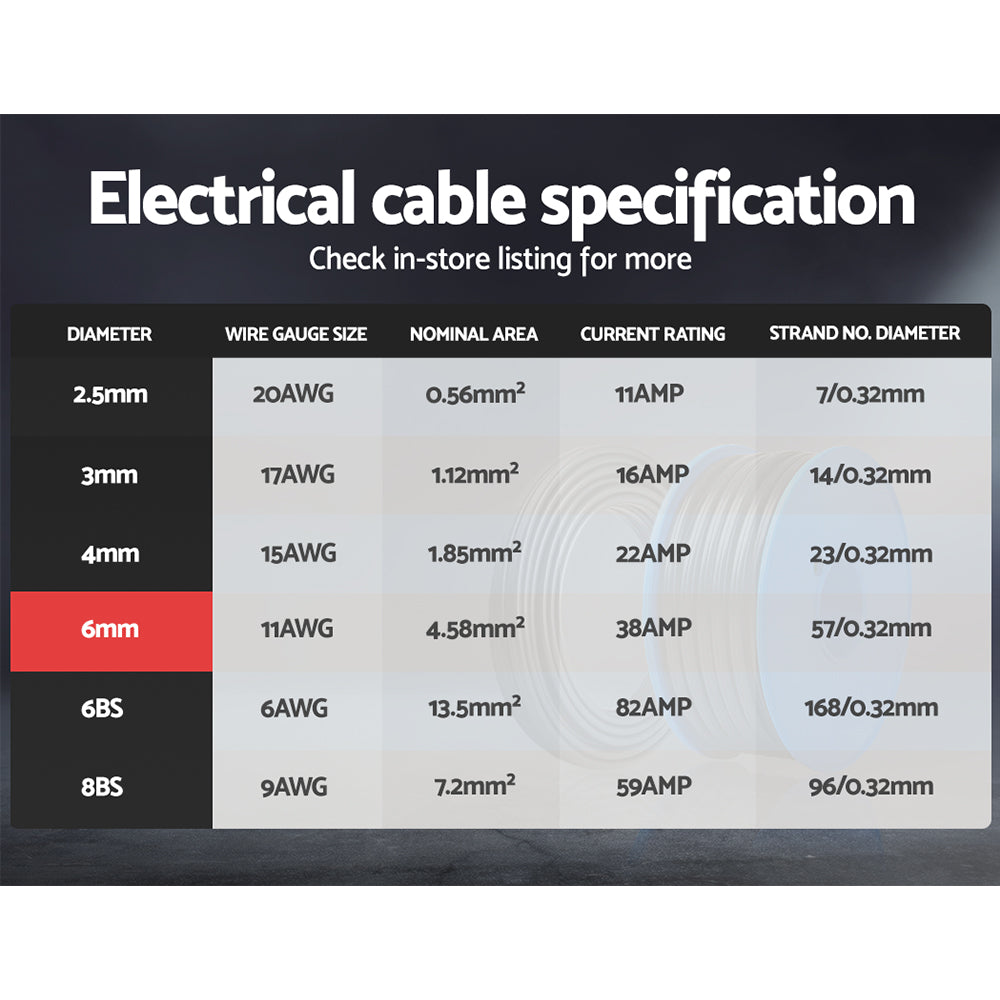

Specifications
Conductor: Oxygen-free plain copper wire to AS/NZ 1125
Insulation: V90 PVC to AS/NZ 3808
Sheath: 5V90 PVC to AS/NZ 3808
Amp rating: 38
No. of cores: 2
Cable Length: 10m
Industry Equiv. : 6mm
Strand no. diameter: 57/0.32mm
Nominal area: 4.59mm2
Nominal O.D.: 5.7mm x 9.6mm
Colour: Black sheathing
Conductor resistance <4.01©/Km(20!)
Dielectric strength(kV/sec AC):2.5/60
Unaged acceptable tensile strength e" 12.5Mpa
Unaged acceptable ultimate elongation e"130%

Package Content
